Universal vacuum cleaner - iPulse H-1635 Safe Plus
Dust class H safety vacuum cleaner with professional equipment
EUR1,188.81*
Prices incl. VAT plus shipping costs
- On-demand filter cleaning thanks to pressure differential measurement
- Particularly efficient within 3.5 sec. per filter, with the force of 300 g
- Patented rotary slide for optimal use of PE bags AND fleece filter bags
- Plastic accessories, floor nozzle 30 (BG Bau recommended)
-
Scope of delivery includes the QUIX quick-change accessory system
Product number:
018614
Safety vacuum cleaner for construction site and workshop "Safe Plus"
With Smartfix (railing for Systainer attachment), 2 Velcro straps, antistatic hose (AS hose).
For the toughest continuous use, for connection to the power tool and direct extraction of hazardous fine dusts during drilling, milling, grinding and sawing work, concrete, plaster, stone, cement, wood, paints, varnishes (hazardous dusts, dust class "H").
A highly intelligent electronic system measures the negative pressure before and after the filter (pressure difference measurement "DDM"). As soon as the vacuum falls below the factory-set value, the impulse filter cleaning system switches on automatically and cleans both filters one after the other within 3.5 seconds, without interrupting work. Even the most difficult fine and problematic dusts - such as gypsum - are easily removed from the filters.
A highly intelligent electronic system measures the negative pressure before and after the filter (pressure difference measurement "DDM"). As soon as the vacuum falls below the factory-set value, the impulse filter cleaning system switches on automatically and cleans both filters one after the other within 3.5 seconds, without interrupting work. Even the most difficult fine and problematic dusts - such as gypsum - are easily removed from the filters.
Scope of delivery includes the QUIX quick-change accessory system, enabling tool changes in no time – secure and convenient.
Advantage: cleaning on demand with a constant high air flow, optimum force effect on the filter, significantly reduced system costs due to longer filter service life, saves time and costs. The vacuum cleaner is BIA certified.
Documents are loaded...
Safety notes
Documents are loaded...

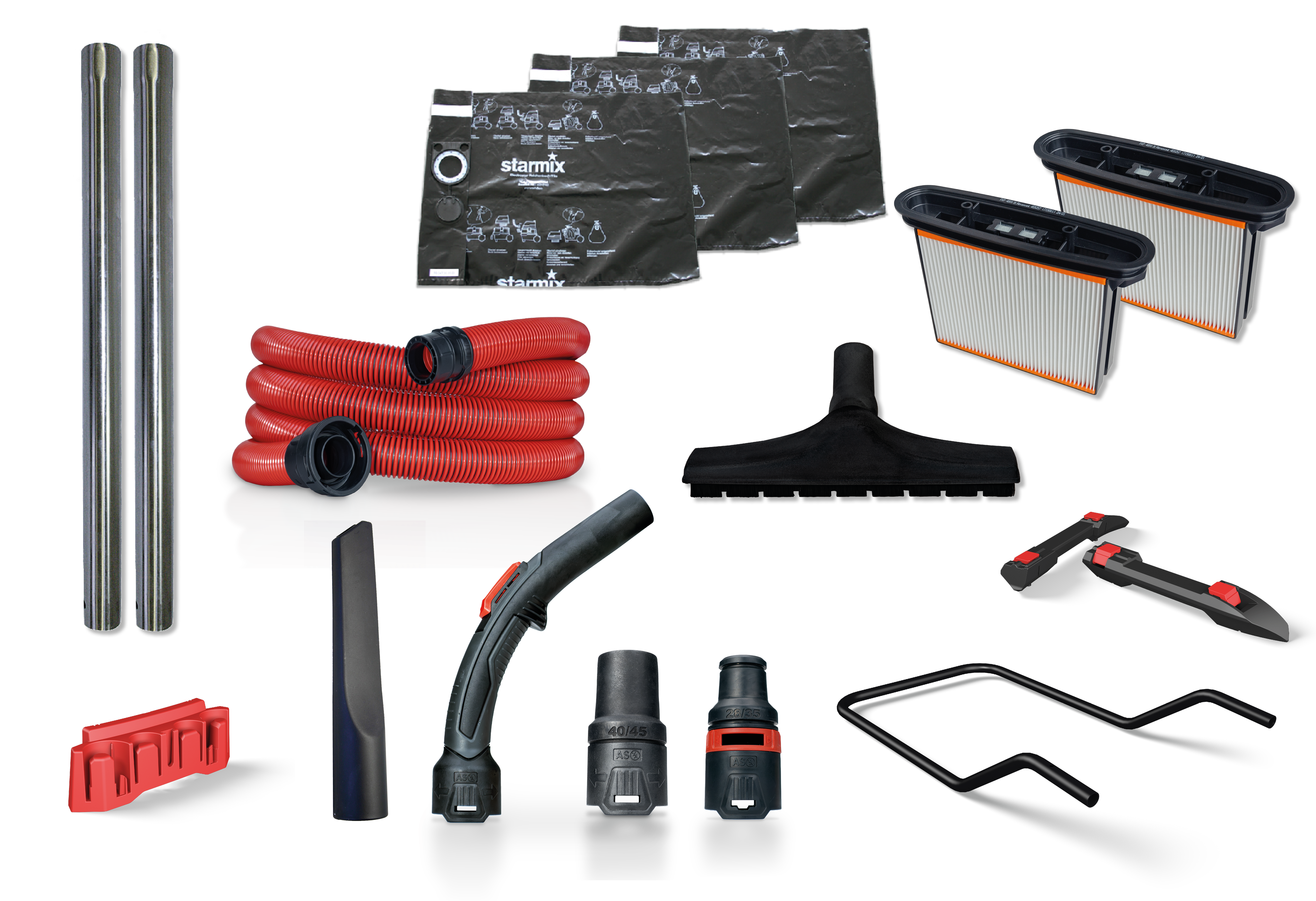

| Accessory | 1 × Suction hose AS 35 mm x 500 mm SW/RED, QUIX, Item No. 459776 1 × Softgrip handle tube AS QUIX, Item No. 459868 2 × Stainless steel suction tubes (50 cm each), Item No. 424842 1 × Crevice nozzle (22 cm long), Item No. 417011 1 × Tool coupling, AS 28/35 QUIX, Item No. 459875 1 × Tool coupling AS 40/45 QUIX, Item No. 459882 1 × Floor nozzle 30, Item No. 440941 |
| Filter bag | 3 pieces special PE emptying bags. Repurchase item no. 425764 (pack of 5) |
| Main filter | FKP 3800 HEPA H14 ADVANCED (Polyester) Dust retention capacity: 99.995% Item no. 459264 |
| Impulse filter cleaning | yes - iPulse |
| Smartfix for toolbox | yes |
| Speed controller | yes, 2-stage |
| Multifunctional element | no |
| Filter indicator light | yes |
| Appliance socket | yes |
| Preselection switch volume flow/ hose ø | yes / 21, 27, 35 |
| Electrical volume flow monitoring with visual + acoustic warning function | yes |
| Rotary valve: flexible use of fleece filter bag and PE emptying bag | yes |
| Carrying handle with cable hook/ hose fixation | yes/yes (2 Velcro straps) |
| Closure for intake manifold | yes |
| Filter indicator light | yes |
| Soft start/run-on | yes |
| Water level detection (Auto shut-off) | yes |
| Accessories depot | yes |
| Antistatically prepared vacuum cleaner | yes |
| Antistatic accessories | yes |
| Power consumption (max.) | 1600 watt |
| Volume flow | (max.) measured at the motor head / hose end: 75 / 45 l/s |
| Negative pressure | (max.) measured at the motor head / hose end: 280 / 245 mbar |
| Tank volume (max.) Gross dust-water | 35/25/22 l plastic |
| Sound pressure level | 69 dB(A) |
| Dimensions | 66 x 40 x 92 cm |
| Weight | 16.8 kg |
| Mains cable length | 8 (rubber, H07RN-F), red |
| Action radius | 13.0 |
VORTEILE AUF EINEN BLICK
Volumenstrom |
|
Eine intelligente Elektronik misst mittels Sensoren vor und nach dem Filter den Unterdruck (DDM). Sobald der werkseitig eingestellte Differenz-Unterdruckwert erreicht wird, schaltet sich automatisch die Impuls-Filterreinigung ein und reinigt mit elektromagnetischen Stößen nacheinander in je ca. 3,5 Sekunden die beiden Filterkassetten. Den dabei einwirkenden Kräften - das über 300-fache der Erdbeschleunigung (300 g) - kann selbst Problemstaub wie Gips nicht standhalten.
Einfacher und sauberer Zugang zu den Filterkassetten. Keine Berührung mit Schmutz oder Staub beim Filterwechsel.
Schlagfeste, extrem robuste Konstruktion. Einfaches, schnelles Entleeren durch glatte Innenwände. Sehr standfest mit großen Rädern und Lenkrollen.
Optimales Staub-Füllvolumen mit dem starmix-Drehschieber. Die Verwendung eines PE-Entleerbeutels erfordert andere Luftverhältnisse im Behälter als Vliesfilterbeutel. Mit dem genial einfachen Drehschieber können durch Umlegen des Schiebers beide Beutel (je nach Anwendungsvorschrift verwenden!) benutzt werden.
OPEN = PE-Entleerbeutel
CLOSE = Vliesfilterbeutel
OPEN = PE-Entleerbeutel
CLOSE = Vliesfilterbeutel
Durch parallel zur Motorachse angebrachte Filter steht fast das gesamte Behälter-Volumen zur Verfügung.
