Universal vacuum cleaner - iPulse M-1635 Safe Plus
Safety vacuum cleaner of dust class M, with professional equipment
EUR1,069.81*
Prices incl. VAT plus shipping costs
- On-demand filter cleaning thanks to pressure differential measurement
- Particularly efficient within 3.5 sec. per filter, with the force of 300g
- Patented rotary valve for optimal use of PE bags AND fleece filter bags
- Optical and acoustic signal when the flow rate is under-run
-
Incl. QUIX quick-change accessory system.
Product number:
018638
Safety vacuum cleaner for construction site and workshop "Safe Plus"
With Smartfix (railing for Systainer attachment), 2 Velcro straps, antistatic hose (AS hose). For the toughest continuous use, for connection to the power tool and direct extraction of hazardous fine dusts during drilling, milling, grinding and sawing work, concrete, plaster, stone, cement, wood, paints, varnishes (hazardous dusts, dust class "M").
A highly intelligent electronic system measures the negative pressure before and after the filter (pressure difference measurement "DDM"). As soon as the vacuum falls below the factory-set value, the impulse filter cleaning system switches on automatically and cleans both filters in succession within 3.5 seconds, without interrupting work. Even the most difficult fine and problematic dusts - such as gypsum - are easily removed from the filters.
A highly intelligent electronic system measures the negative pressure before and after the filter (pressure difference measurement "DDM"). As soon as the vacuum falls below the factory-set value, the impulse filter cleaning system switches on automatically and cleans both filters in succession within 3.5 seconds, without interrupting work. Even the most difficult fine and problematic dusts - such as gypsum - are easily removed from the filters.
The scope of delivery includes the QUIX quick-change accessory system, enabling accessory changes in seconds – secure and convenient.
Advantage: cleaning as required with a constant high air flow, optimum force effect on the filter, significantly reduced system costs due to longer filter service life, saves time and costs.
Documents are loaded...
Safety notes
Documents are loaded...

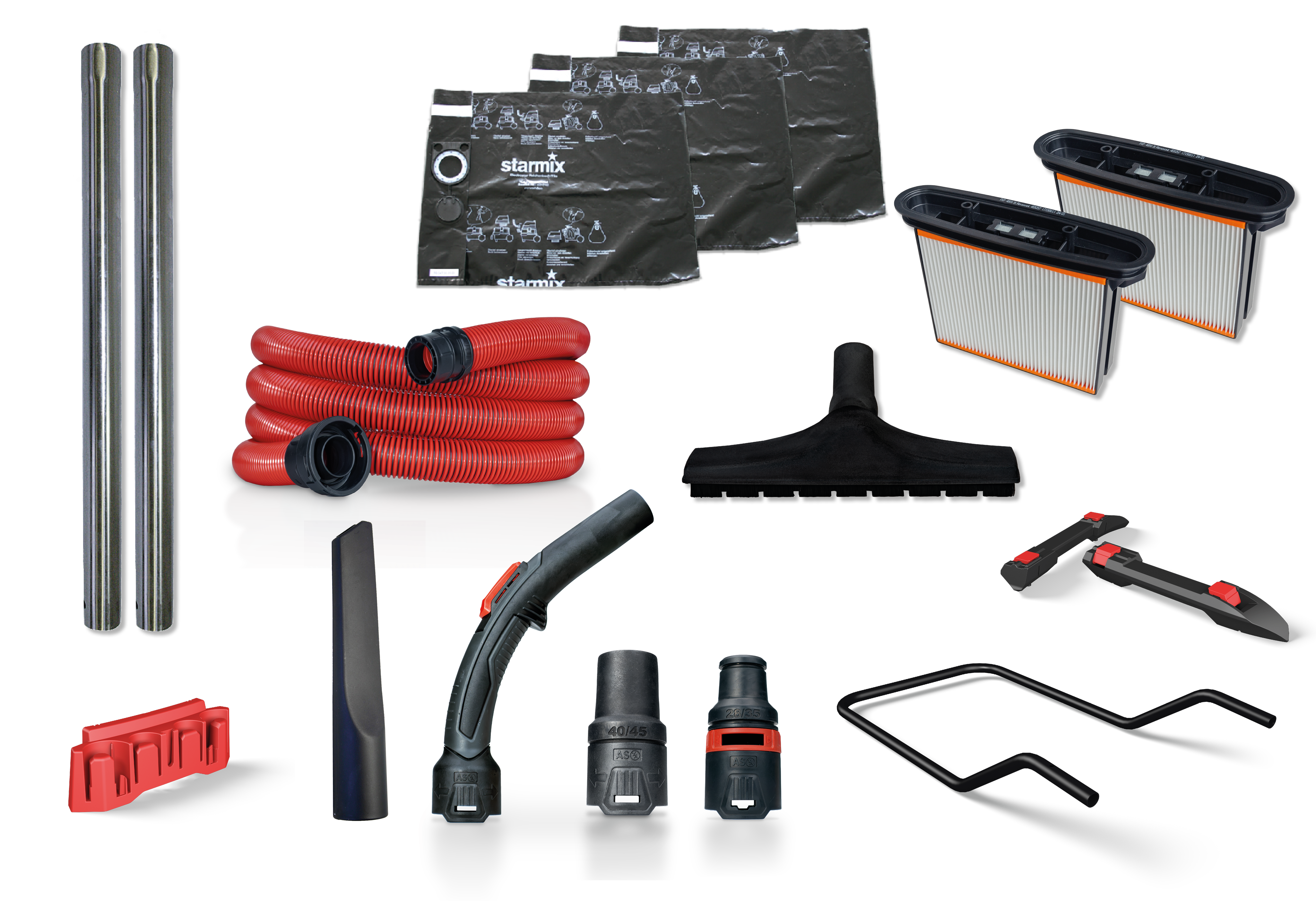

| Accessories set | 1 × AS suction hose ø 35 mm × 500 mm, black/red, QUIX, item no. 459776; 1 × handle tube Softgrip AS QUIX, item no. 459868; 2 × stainless steel suction tubes (50 cm each), item no. 424842; 1 × crevice nozzle (22 cm long), item no. 417011; 1 × tool adapter, AS 28/35 QUIX, item no. 459875; 1 × tool adapter AS 40/45 QUIX, item no. 459882; 1 × floor nozzle 30, item no. 440941. |
| Filter bag | 3 pieces special PE emptying bags. Repurchase item no. 425764 (pack of 5) |
| Main filter | FKP 4800 M ADVANCED (polyester) Dust retention: 99.9% Item no. 459257 |
| Impulse filter cleaning | yes - iPulse |
| Smartfix for toolbox | yes |
| Speed controller | yes, 2-stage |
| Multifunctional element | no |
| Filter indicator light | yes |
| Appliance socket | yes |
| Preselection switch volume flow/ hose ø | yes / 21, 27, 35 |
| Electrical volume flow monitoring with visual + acoustic warning function | yes |
| Rotary valve: flexible use of fleece filter bag and PE emptying bag | yes |
| Carrying handle with cable hook/ hose fixation | yes/yes (2 velcro) |
| Closure for intake manifold | yes |
| Soft start/run-on | yes |
| Water level detection | yes |
| Water level detection (Auto shut-off) | yes |
| Accessories depot | yes |
| Antistatically prepared vacuum cleaner | yes |
| Antistatic accessories | yes |
| Power consumption (max.) | 1600 watt |
| Volume flow | (max.) measured at the motor head / hose end: 75 / 45 l/s |
| Negative pressure | (max.) measured at the motor head / hose end: 280 / 245 mbar |
| Tank volume (max.) Gross dust-water | 35/25/22 l; Plastic container |
| Sound pressure level | 69 dB(A) |
| Dimensions | 66 x 40 x 92 cm |
| Weight | 16.8 kg |
| Mains cable length | 8m (rubber, H07RN-F), red |
| Action radius | 13.0 m |
ADVANTAGES AT A GLANCE
|
|
An intelligent electronic system measures the negative pressure (DDM) by means of sensors upstream and downstream of the filter. As soon as the factory-set differential vacuum value is reached, the impulse filter cleaning system switches on automatically and cleans the two filter cassettes one after the other in approx. 3.5 seconds each with electromagnetic shocks. Even problem dust such as gypsum cannot withstand the forces acting during this process - more than 300 times the acceleration due to gravity (300 g).
Easy and clean access to the filter cassettes. No contact with dirt or dust when changing filters.
Impact-resistant, extremely robust construction. Easy, fast emptying due to smooth inner walls. Very stable with large wheels and swivel castors.
Optimum dust filling volume with the starmix rotary valve. The use of a PE emptying bag requires different air conditions in the container than fleece filter bags. With the ingeniously simple rotary slide, both bags (use according to application instructions!) can be used by flipping the slide.
OPEN = PE emptying bag
CLOSE = fleece filter bag
OPEN = PE emptying bag
CLOSE = fleece filter bag
Filters mounted parallel to the motor axis mean that almost the entire tank volume is available
