Universal vacuum cleaner - iPulse h-1235 Asbestos Safe Plus

Staubklasse H
Made in Germany
Safety vacuum cleaner of dust class H-asbestos, with professional equipment

Safety vacuum cleaner for construction site and workshop "Safe Plus"

With Smartfix (railing for Systainer attachment), 2 Velcro straps, antistatic hose (AS hose). For the toughest continuous use, for connection to the power tool and direct extraction of hazardous fine dusts during drilling, milling, grinding and sawing work, concrete, plaster, stone, cement, wood, paints, varnishes (hazardous dusts, dust class "H-asbestos").
A highly intelligent electronic system measures the negative pressure before and after the filter (pressure difference measurement "DDM"). As soon as the vacuum falls below the factory-set value, the impulse filter cleaning system switches on automatically and cleans both filters in succession within 3.5 seconds, without interrupting work. Even the most difficult fine and problematic dusts - such as gypsum - are easily removed from the filters. Advantage: cleaning as required with a constant high air flow, optimum force effect on the filter, significantly reduced system costs due to longer filter service life, saves time and costs.
Documents are loaded...
Filter bag 3 pieces special PE emptying bags (asbestos). Repurchase item no. 425757 (pack of 5).

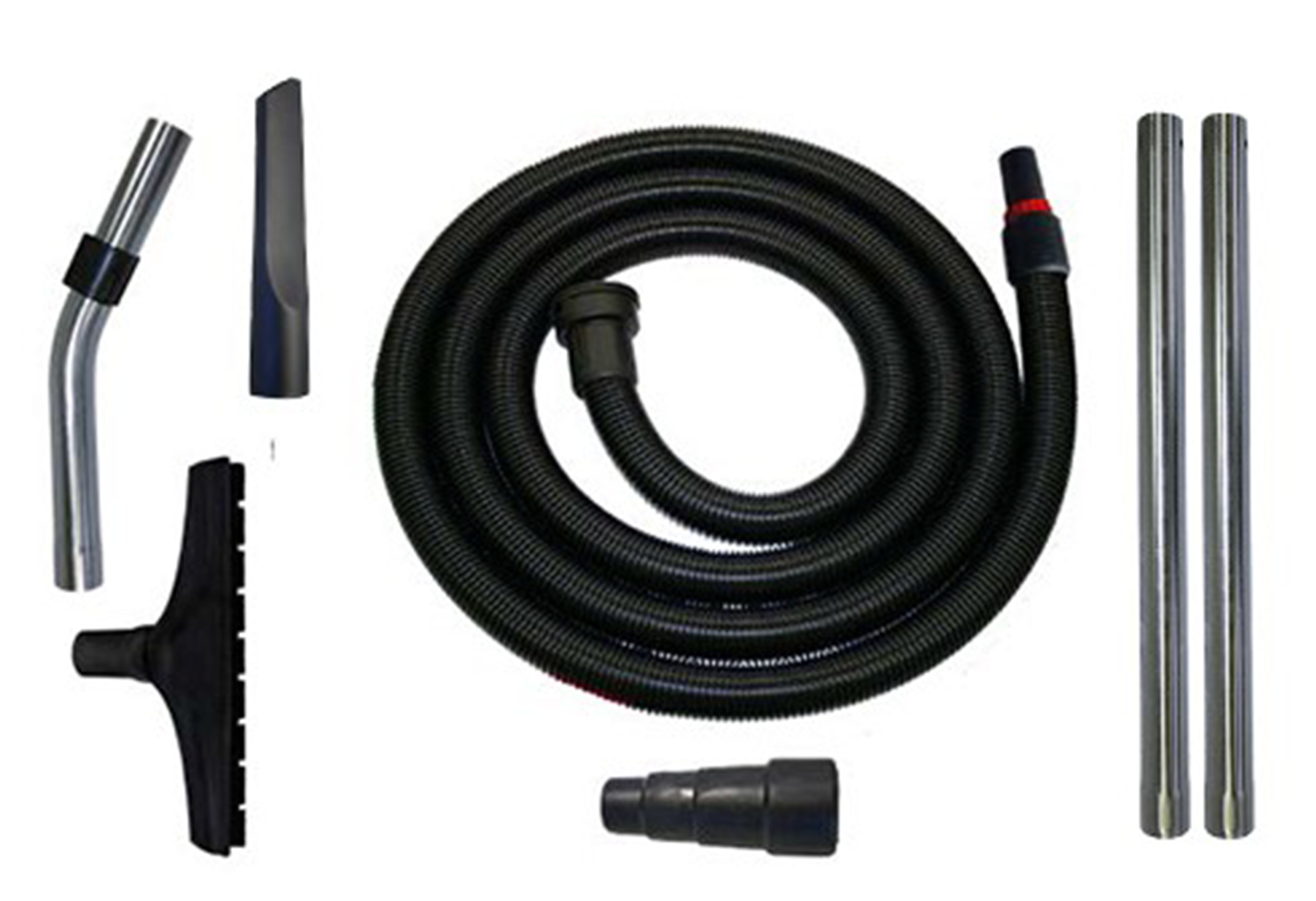

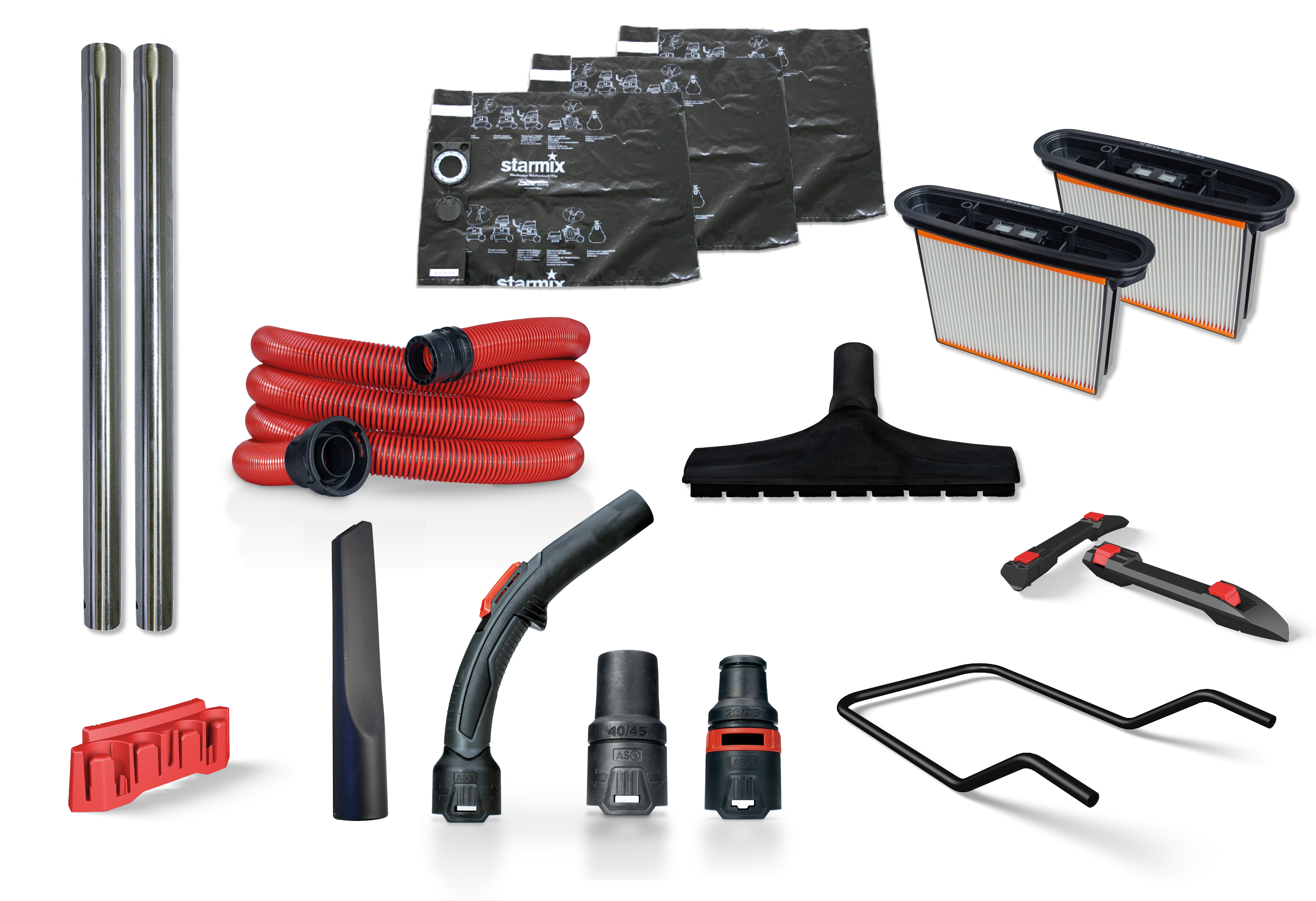

Accessory Smartfix; 2 Velcro straps; driving handle; 1x suction hose AS, m.rt. secondary air ring Ø 35 mm x 5 m (item no. 447162); 2x suction tube ES 35-50, stainless steel, Ø 35 mm x 50 cm (item no. 424842); 1x handle tube stainless steel, stepped (item no. 421445); 1x floor nozzle 30 (item no. 440941); 1x connection sleeve, stepped (item no. 425719); 1x crevice nozzle 22 cm (item no. 417011)
Carrying handle with cable hook/ hose fixation yes/yes (2 velcro straps)
Smartfix for toolbox yes
Multifunctional element no
Rotary valve: flexible use of fleece filter bag and PE emptying bag yes
Speed controller yes, 2-stage
Electrical volume flow monitoring with visual + acoustic warning function yes
Driving handle yes
Filter indicator light yes
Appliance socket yes
Main filter FKP 3800 HEPA H14 ADVANCED (Polyester) Dust retention capacity: 99.995% Item no. 459264
Impulse filter cleaning yes - iPulse
Soft start/run-on yes
Closure for intake manifold yes
Preselection switch volume flow/ hose ø yes / 21, 27, 35
Water level detection (Auto shut-off) yes
Accessories depot yes
Antistatic prepared yes
Power consumption (max.) 1200 watt
Volume flow (max.) 70 l/s measured at motor head, 40 l/s measured at hose end
Dimensions 66 x 40 x 92 * cm (L x W x H) (*incl. FB)
Weight 16.8 kg

Advantages at a glance

  • DDM Continuous monitoring of filter occupancy

  • Filter cleaning in 3.5 sec.

  • High performance motor for more vacuum
    and volume flow
  • Cleaning with 300 times acceleration due to gravity

  • Strong suction power without interruption

  • Available for the dust classes L/M/H asbestos

  • Top quality "Made in Germany"
  • An intelligent electronic system measures the negative pressure (DDM) by means of sensors upstream and downstream of the filter. As soon as the factory-set differential vacuum value is reached, the impulse filter cleaning system switches on automatically and cleans the two filter cassettes one after the other in approx. 3.5 seconds each with electromagnetic shocks. Even problem dust such as gypsum cannot withstand the forces acting during this process - more than 300 times the acceleration due to gravity (300 g).

    iPulse Vorteil - Druckdifferenzmessung

    Easy and clean access to the filter cassettes. No contact with dirt or dust when changing filters.

    iPulse Vorteil - Einfacher Filterwechsel.

    Impact-resistant, extremely robust construction. Easy, fast emptying due to smooth inner walls. Very stable with large wheels and swivel castors.

    iPulse Vorteil - Doppelwandiger Behälter.

    Optimum dust filling volume with the starmix rotary valve. The use of a PE emptying bag requires different air conditions in the container than fleece filter bags. With the ingeniously simple rotary slide, both bags (use according to application instructions!) can be used by flipping the slide.
    OPEN = PE emptying bag
    CLOSE = fleece filter bag

    Filters mounted parallel to the motor axis mean that almost the entire tank volume is available

    iPulse Vorteil - Hohes Nettovolumen.
    Save now!

    When purchasing a safety vacuum cleaner of dust class M, H, or H-asbestos, you can receive a subsidy from BG Bau of up to € 300.

    Learn more

    Harmful fine dusts? With our class M, H and H-asbestos safety vacuums, you don't have to worry anymore.

    The goal of our safety vacuums is to prevent uncontrolled dust generation around the user. Our safety vacuums extract the dust particles directly at the point of origin, the power tool, and filter them out of the aspirated air via dust class M or H filters.

    STOP dust


    iPulse - intelligent pulse filter cleaning

    Your iPulse for all dust classes (L, M and H)

    More about dust

    to the products



    FKP 3800 HEPA H14 Advanced
    Polyester pleated filter cassette with insertion rib
    FBPE 35 - 5 pieces Asbestos
    Emptying and disposal bags - 5 pieces. For all SP iPulse H-asbestos vacuum cleaners with 35l-container.
    Suction hose AS 35-500 with red air slide
    Suction hose antistatic Ø 35 mm, length 5 m (black)
    Suction tube ES 35-50
    Suction tube stainless steel Ø 35 mm, length 50 cm
    Handle tube ES 35 with NL
    Stainless steel handle tube with secondary air slide Ø 35 mm
    Floor nozzle 30
    Floor nozzle BG Bau 30 cm wide
    Connection sleeve stepped
    Connection sleeve stepped conical Ø 25.5-38 mm, length 11 cm
    Joint nozzle 22
    Plastic crevice nozzle 22 cm long
