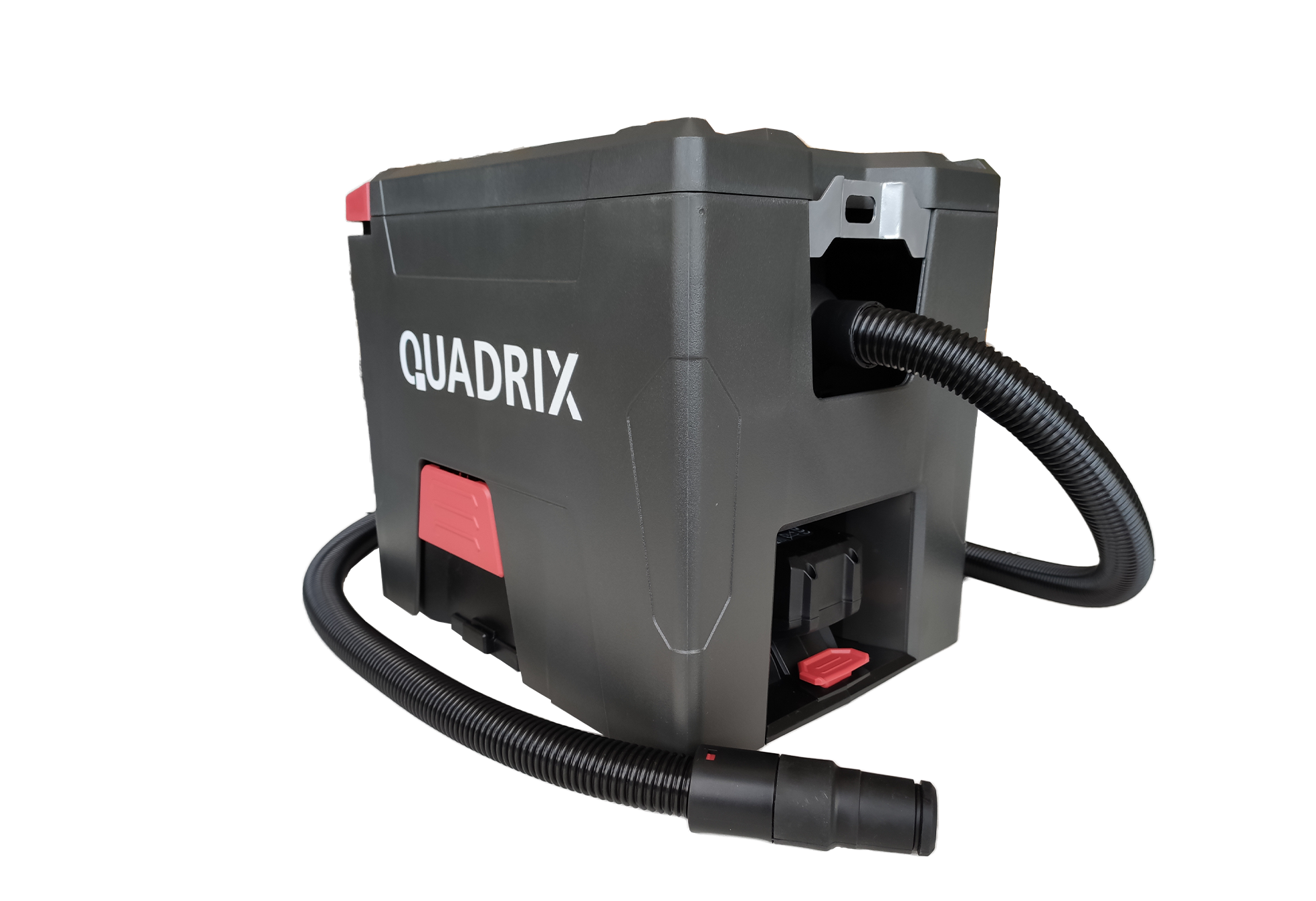

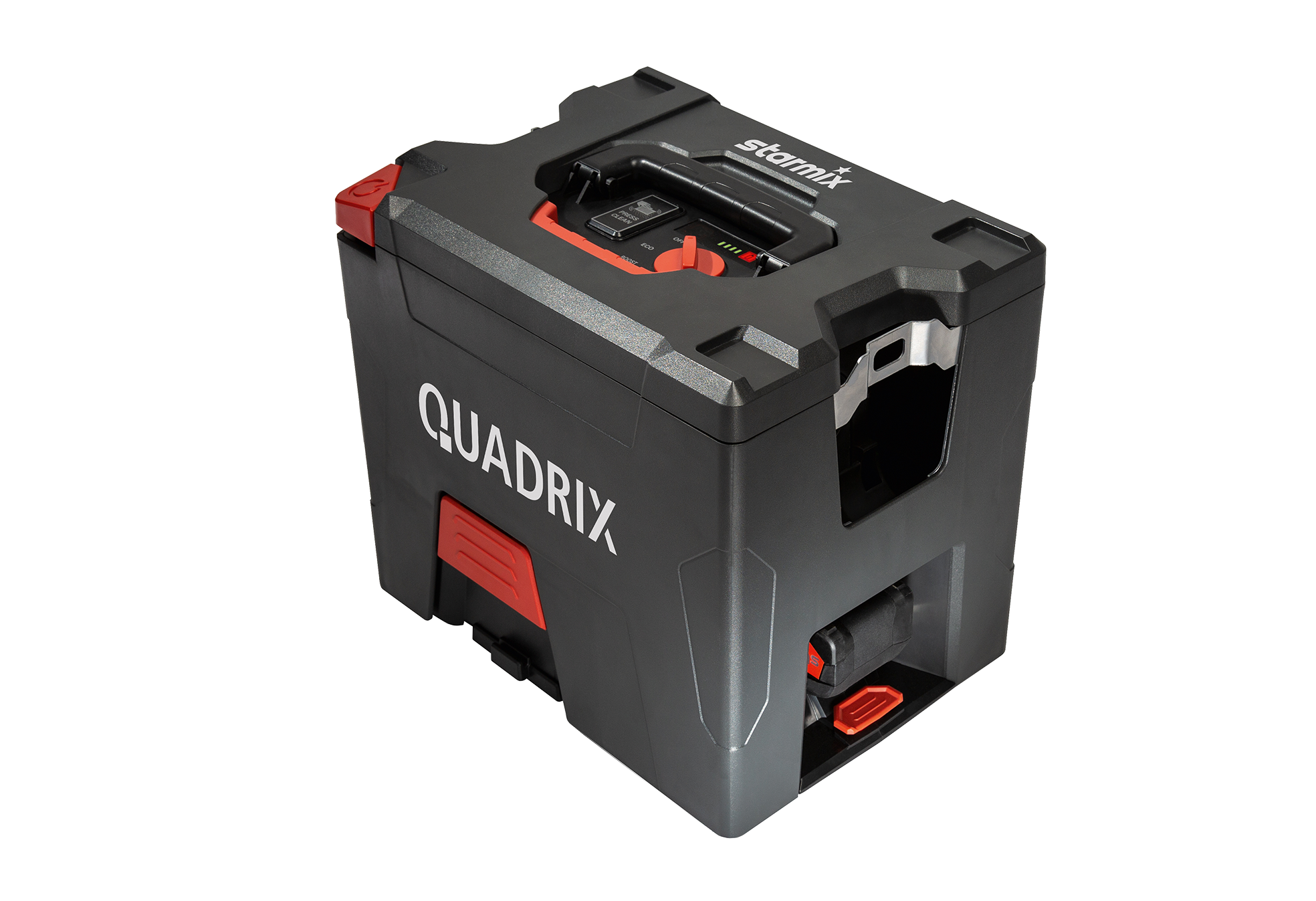

Battery vacuum cleaner - QUADRIX L 18 V (without battery pack/charger)

Staubklasse L
Battery vacuum cleaner with manual filter cleaning

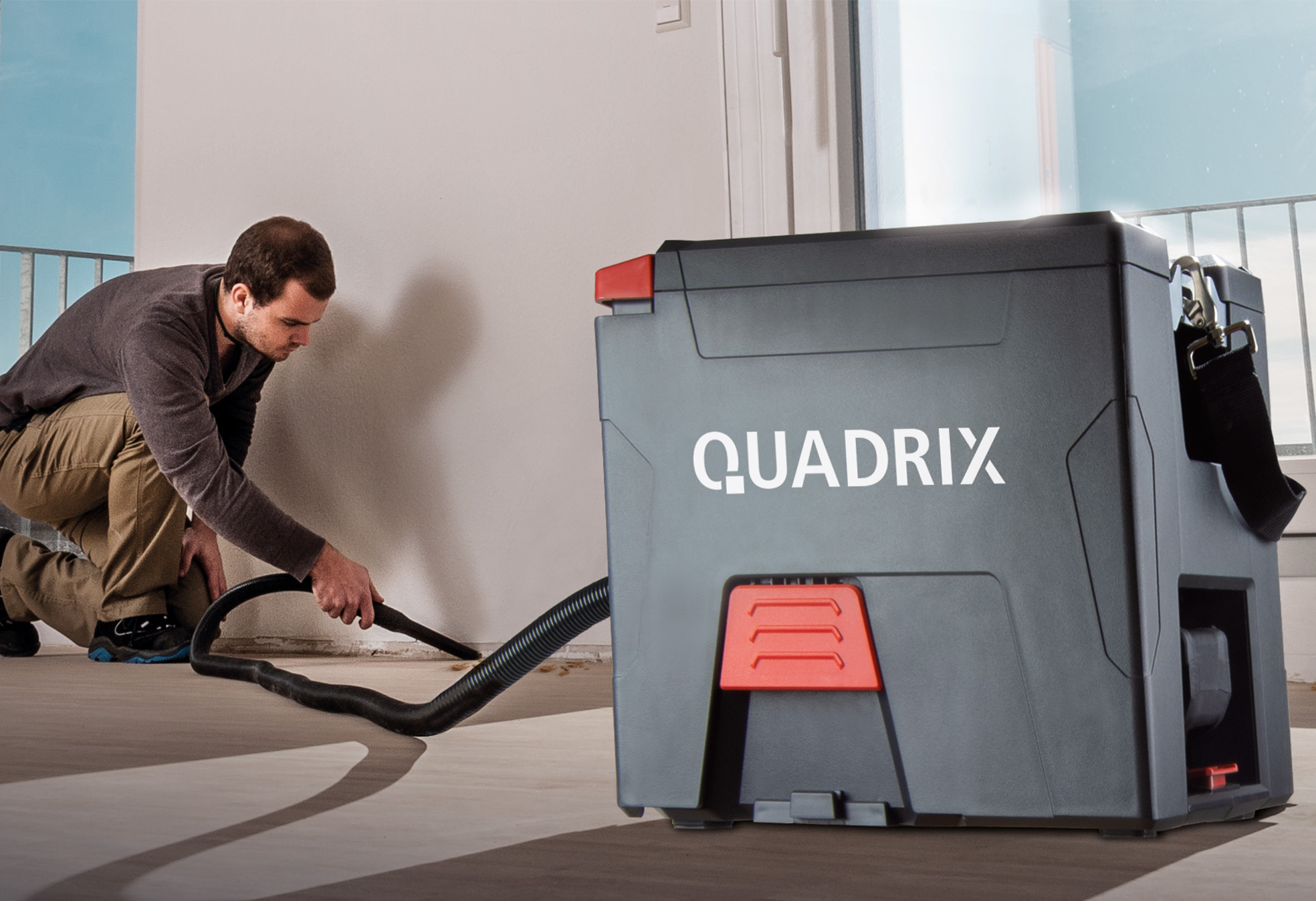

The lightweight and compact cordless vacuum cleaner for mobile use in the workshop and on the construction site

With manual filter cleaning PressClean and efficient Eco mode for a longer runtime per battery charge, the Quadrix L18 V Top ensures a clean result. Perfectly suited for service and assembly work as well as for vacuuming dust and chips. Dry vacuum cleaner with commercial approval, certified according to EU standard for dust class L. With integrated blowing function for blowing out, drying and discharging the exhaust air.
The compact design of the cordless handheld vacuum cleaner allows stacking of the starmix starboxes (Tanos system) on the vacuum. The robust housing with rubber protectors ensures gentle and non-slip parking on different surfaces. All around the ideal companion for fast, mobile and uncomplicated cleaning with a large action radius.
Documents are loaded...
Filter bag 1 x FBV 7.5; item no. 448794 (5 pieces)

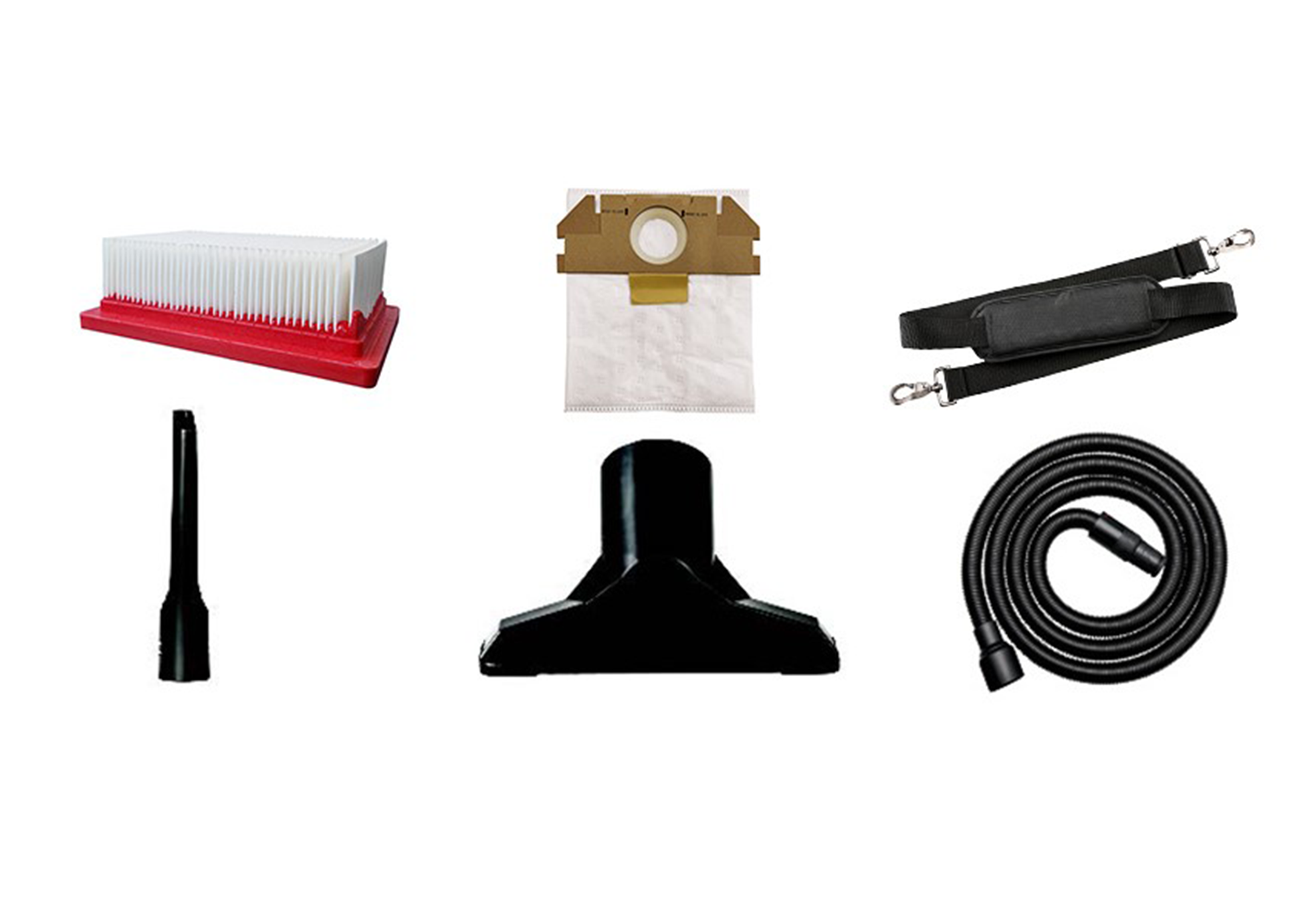

Accessories set 1x suction hose 27-300 (f. QUADRIX), ø 32 mm x 3 m (Item No. 448787) with connection sleeve, ø 27 mm x 3 m crevice nozzle, suction nozzle, carrying strap; 1x fleece filter bag FBV 7.5 (Item No. 448794); 1x pleated filter FF 3800 (Item No. 448800)
Filter FF 3800, Item No. 448800
Blow function yes
Filter cleaning yes (PressClean)
Main filter FF 3800; Item No. 448800
Capacity indicator battery yes
Power regulation 2-stage (Eco/Boost)
Hose and accessory storage yes, completely stowable in the vacuum cleaner (battery/charger not included)
Battery Not included in the scope of delivery
Volume flow 35 l/s (max.)
Container volume (max.) Gross - dust: 7.5 / 5.5 l
Dimensions 39 x 29,3 x 35,7 cm (L x W x H)
Weight 6.2 kg (without accessories/battery)
Runtime Battery runtime at 18V 5.2 Ah (approx.); Eco mode: approx. 25 min. / Boost mode: approx. 15 min.
Schallleistungspegel 83,8 dB(A)
Voltage 18 Volt

Advantages at a glance

The QUADRIX L 18V is equipped with the manual filter cleaning PressClean. By pressing the switch and holding the hose closed, the filter is cleaned by means of a strong air flow during breaks in work.

HStarmix ISC Vorteil - Impulse-Filterabreinigung

The QUADRIX runs with any 18V battery from the CAS battery system. Thanks to compatibility with over 230 machines from leading manufacturers, it offers maximum flexibility.

HStarmix ISC Vorteil - Impulse-Filterabreinigung

In the integrated storage compartments, all accessories are stowed in the vacuum cleaner to save space.

HStarmix ISC Vorteil - Impulse-Filterabreinigung

With blowing function to blow out, dry and discharge the air.

User testimonials


Perfect for mobile use!

The Quadrix is light, handy and has no protruding elements that could interfere during transport. The flexible rubber sleeve is an absolute must when using tools from different manufacturers. The battery power is completely sufficient.
 The vacuum positively surprises by the fact that all accessories can be stored in it. Both the nozzles, the second battery and charger as well as the "bulky" suction hose. Thanks to its shape, it adapts very well to the Systainer and hardly takes up any space in the workshop or in the car, since you can integrate it in the "Systainer stack".

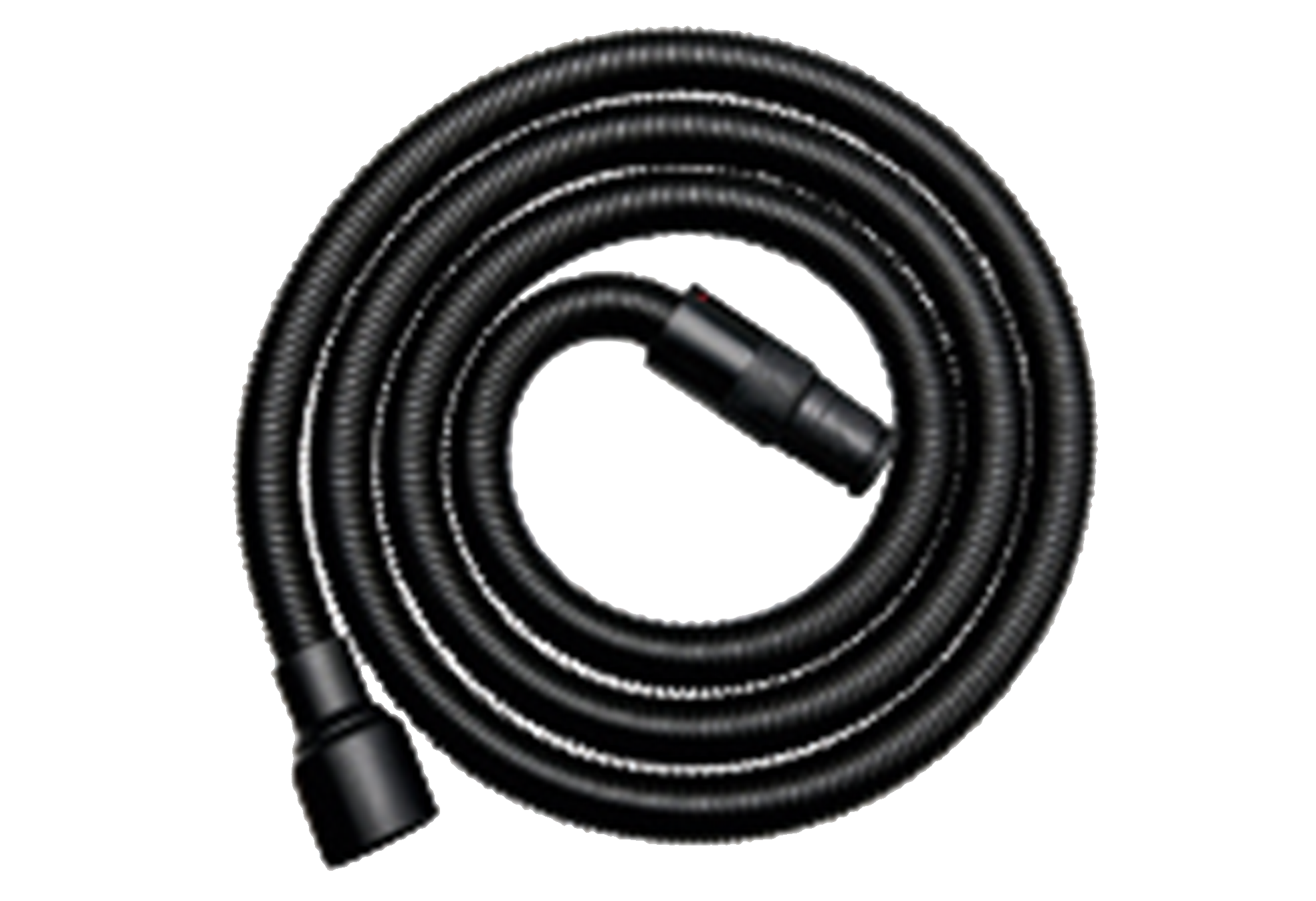

Suction hose 27-300 for Quadrix
Suction hose 27-300 with connection sleeve

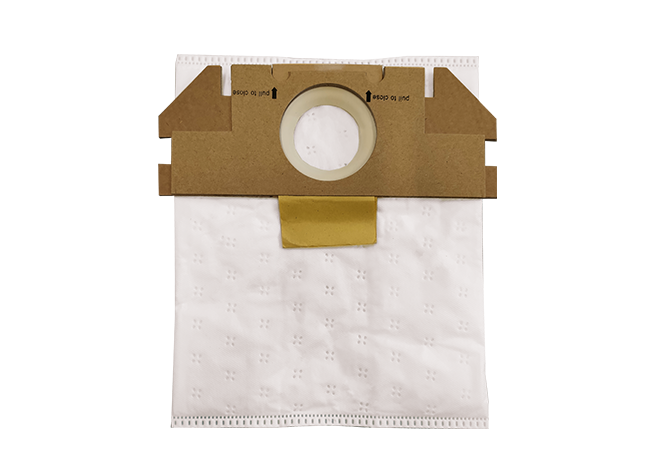

FBV 7,5 (5 Pack for Quadrix)
Fleece filter bag (pack of 5) in polybag, only for Quadrix

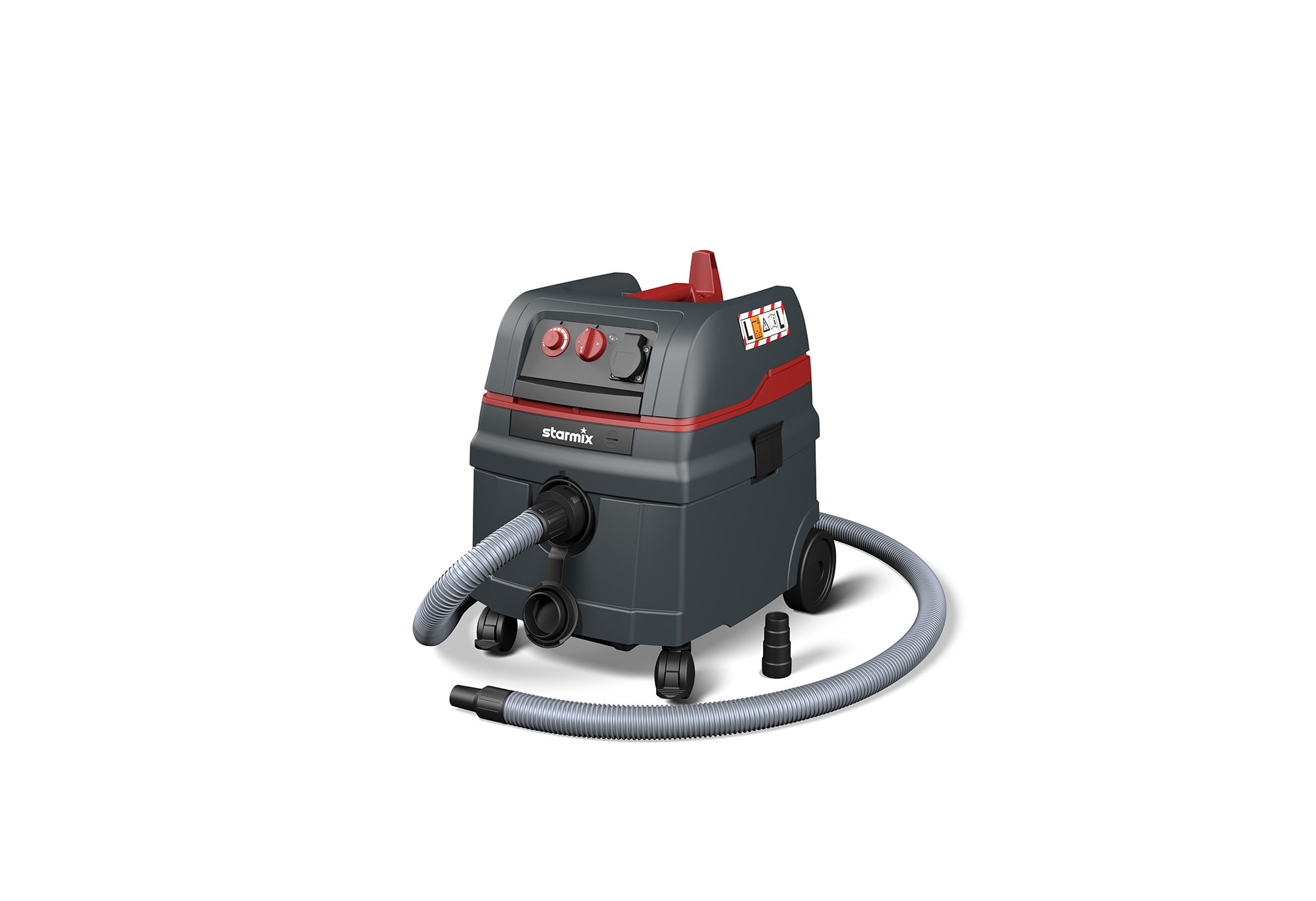

Universal vacuum cleaner - ISC L-1625
Power tool vacuum cleaner (wet/dry)

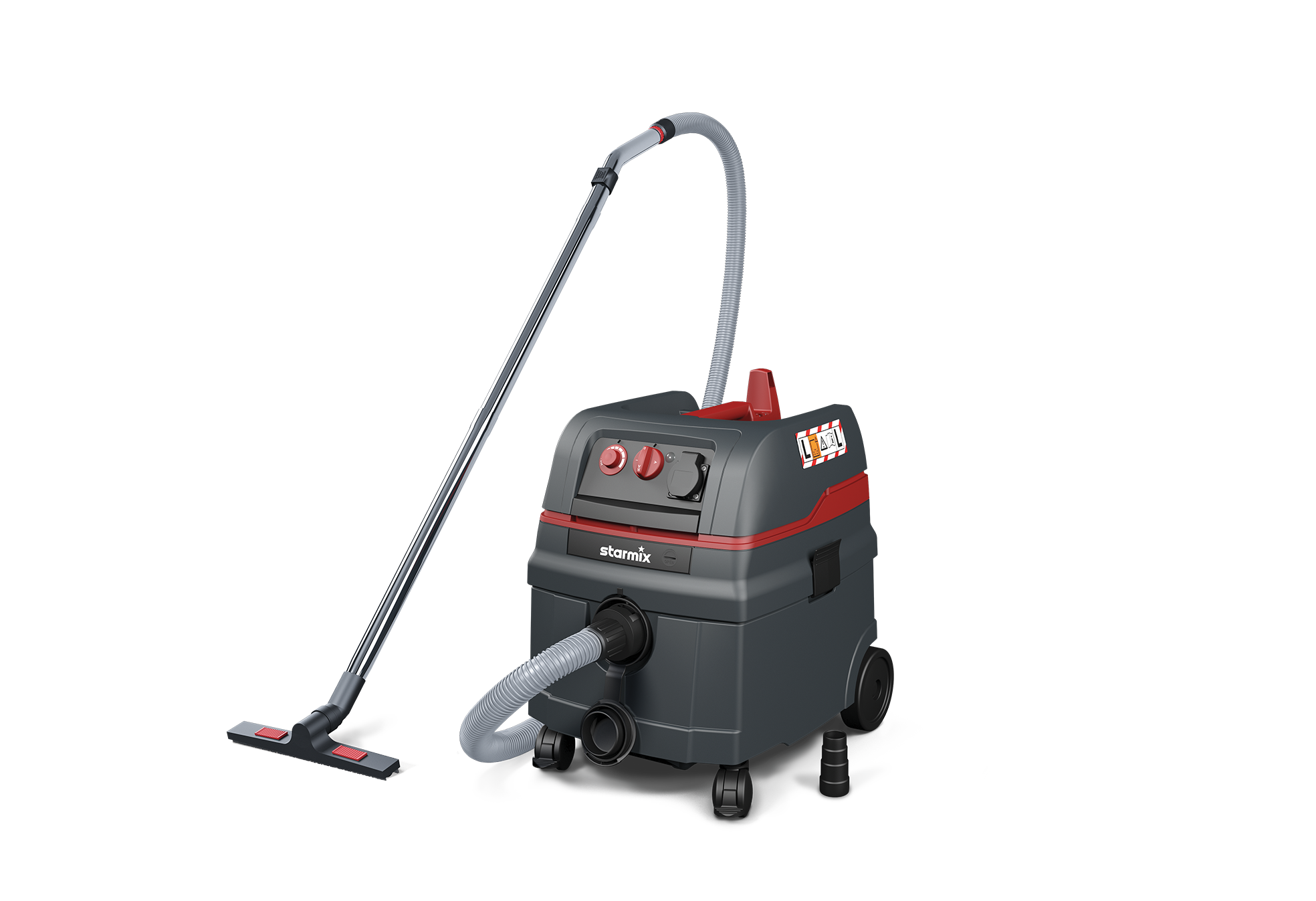

Universal vacuum cleaner - ISC L-1625 Top
Power tool vacuum cleaner (wet/dry)
Sale in Starmix store

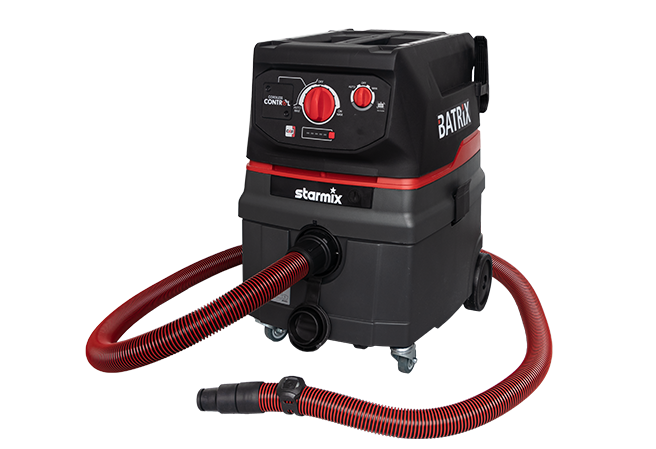

Battery vacuum cleaner - ISC Batrix L 36-18V
Battery wet-dry vacuum cleaner for class L dusts. With up to 100 minutes run time.
EUR799.00* EUR998.41*

Other CAS compatible products

Battery charger ASC 55
Standard charger ASC 55 is suitable for charging starmix and CAS Li-ion battery packs (Cordless Alliance System).
Battery charger SC 30
For charging all CAS Li-Power and LiHD sliding seat battery packs (12V - 18V)
Battery pack 18 V 10.0 ah Li-HD
Intelligent battery management for long life with patented "AIR COOLED" charging technology.
Battery pack 18V Li-Power 5.2 Ah
Li-Power battery pack 18V 5.2 Ah for Quadrix and SMART vacuums
Battery pack 18V LI-Power 2.0 Ah
Li-Power-Akkupack 18V 2.0 Ah
Quick charger ASC 145
Quick charger for charging Starmix and CAS Li-Ion battery packs (Cordless Alliance System).
Quick charger ASC 145 Duo
Quick charger ASC 145 DUO is suitable for charging Starmix and CAS Li-Ion battery packs (Cordless Alliance System).
Sale in Starmix store
Battery vacuum cleaner - ISC BATRIX M 36-18V
Battery wet-dry vacuum cleaner for class M dusts. Up to 100 minutes running time. Up to 300 € BG-Bau promotion.
EUR899.00* EUR1,129.31*
Sale in Starmix store
Battery vacuum cleaner - ISC Batrix L 36-18V
Battery wet-dry vacuum cleaner for class L dusts. With up to 100 minutes run time.
EUR799.00* EUR998.41*
Sale in Starmix store
Battery vacuum cleaner - SMART L 18V
Portable Battery Wet Dry Vacuum Cleaner
EUR144.00* EUR177.31*
Sale in Starmix store

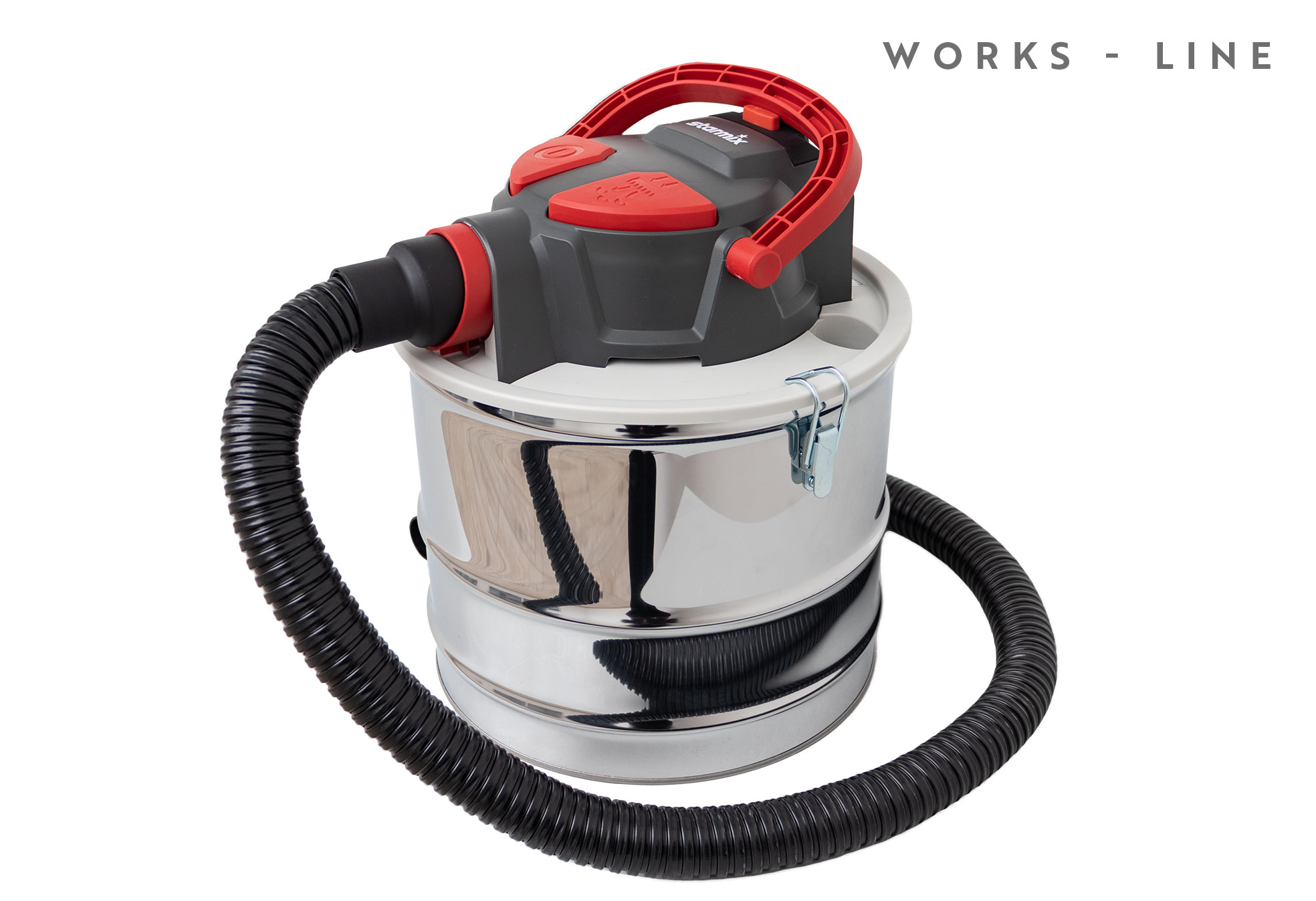

Ash vacuum cleaner AV P-15 18V
Ash vacuum cleaner for dry vacuuming, with filter cleaning and 15 l - container
EUR134.00* EUR141.61*

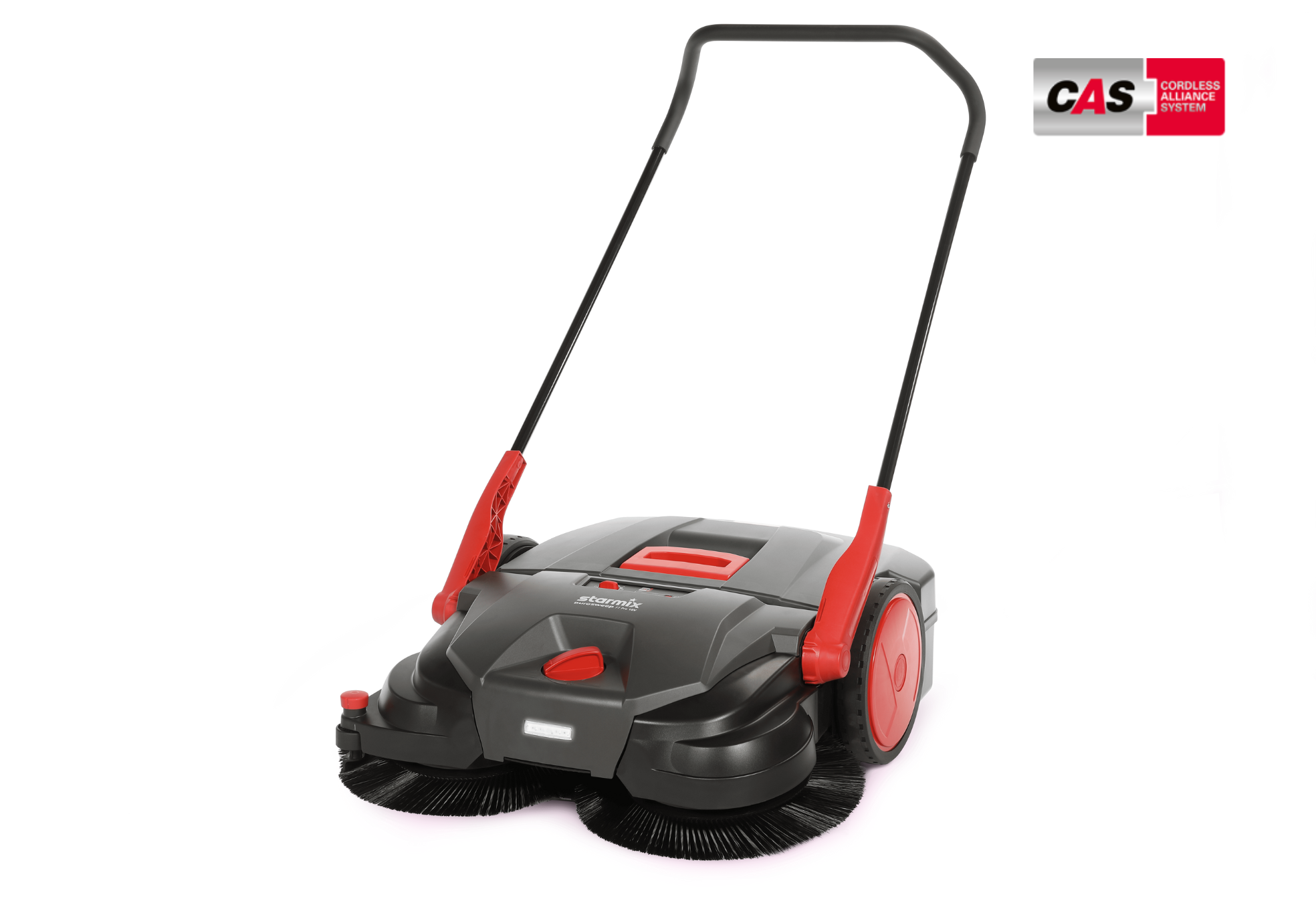

Hand sweeper DuroSweep 77 Pro 18V
